Objective
The purpose of this assignment is twofold: first, to measure particle size
characteristics of materials that will be used in our next project; and second,
to become familiar with the ASCE author-date citation system.

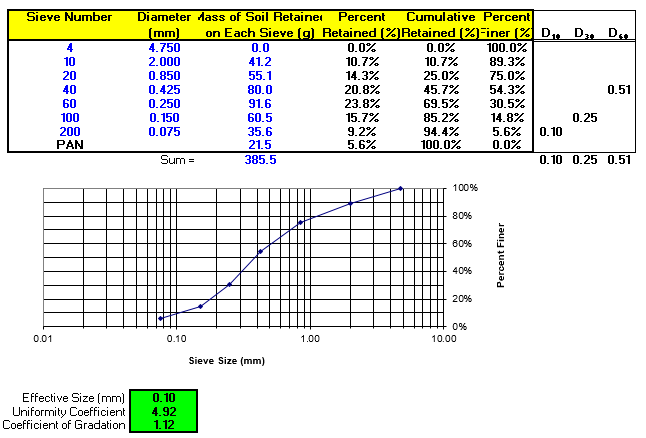

Part 1: The following are the results of a
sieve analysis:
Sieve Number
|
Mass of soil retained
on each sieve (g) |
Percent retained
on each sieve (%) |
Cumulative percent
retained on each sieve (%) |
Percent
finer (%) |
| 4 |
0 |
|
|
|
| 10 |
41.2 |
|
|
|
| 20 |
55.1 |
|
|
|
| 40 |
80.0 |
|
|
|
| 60 |
91.6 |
|
|
|
| 100 |
60.5 |
|
|
|
| 200 |
35.6 |
|
|
|
| Pan |
21.5 |
|
|
|
Determine: (a) the percent finer for each sieve and plot the particle-size distribution
curve; (b) estimate D10, D30,
and D60 from the particle-size distribution curve; (c) the
effective size; (d) the uniformity coefficient, Cu; and (e)
the coefficient of gradation, Cc.
Part 2: For the sieve analysis performed in laboratory
determine: (a) the percent finer for each sieve and plot the particle-size distribution
curve; (b) estimate D10, D30,
and D60 from the particle-size distribution curve; (c) the
effective size; (d) the uniformity coefficient, Cu; and (e)
the coefficient of gradation, Cc. If you were
unable to get data in lab, use the following data for anthracite.
Sieve Number
|
Mass of soil retained
on each sieve (g) |
Percent retained
on each sieve (%) |
Cumulative percent
retained on each sieve (%) |
Percent
finer (%) |

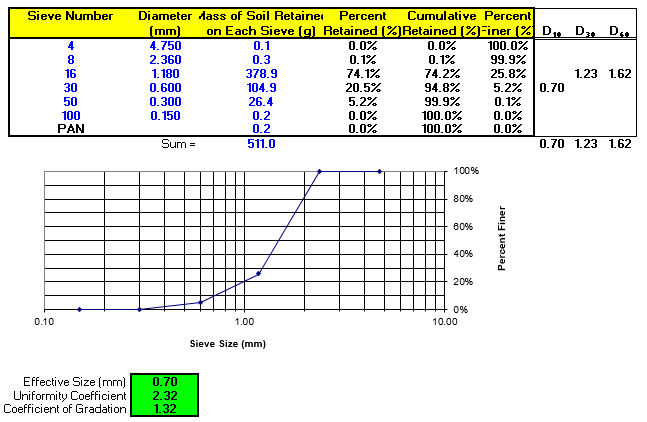

| 4 |
0.1 |
|
|
|
| 8 |
0.3 |
|
|
|
| 16 |
378.9 |
|
|
|
| 30 |
104.9 |
|
|
|
| 50 |
26.4 |
|
|
|
| 100 |
0.2 |
|
|
|
| Pan |
0.2 |
|
|
|
