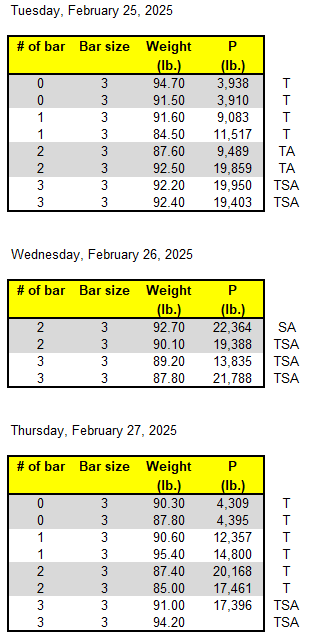

CIVL 1112 - Reinforced Concrete Beam Project - Week 1 Data
set cell vertical height

Notes: There was no shear reinforcement in any beam. The strength of concrete used in the ACI mix design was 6,000 psi.

Click here for a link to RC beam data for 2017 - 2024



No shear reinforcement
T Tension failure
S Shear failure
C Compression failure
A Anchorage failure
