Objective
The purpose of this assignment is twofold: (1) develop a spreadsheet that
computes the balanced latitudes and departures of a traverse given the bearings
and distances of each side, and (2) compute the bearings of a traverse based on
survey data and a reference bearing.
You must submit the cover
sheet for the assignment, printouts of your
spreadsheet for Parts 1, 2, and 3, adn your hand
calculation for Part 4. Also, submit
your spreadsheets for Parts 1, 2, and 3 to Canvas. You
must follow the Excel format.
Write a spreadsheet that computes
corrected
latitudes and departures for a traverse where angles are given by their

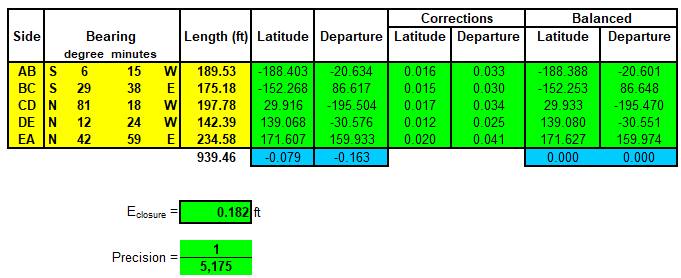

bearings. The figures below show a typical spreadsheet
layout for this problem. Your spreadsheet may look different if it provides
the same input and parameter definitions. Note that the directions N/S and E/W
are in separate cells. Also, the values for degrees and minutes are in separate
cells. Compute the latitudes and departures, closure error, precision of the
traverse, latitude and departure corrections, and balanced latitudes and
departures. The values listed in the yellow cells are input data and those
shown in the green and blue cells are computed.

Click
here for an Excel
template for this assignment.
Part 1. Compute the corrected latitudes and departures for the data displayed in the
example shown above.
Part 2. Use your traverse spreadsheet to compute the corrected and balanced latitudes and
departures for the traverse shown below.

Part 3. A four-sided closed field traverse has the following distances in feet: AB =
636.45; BC = 654.49; CD = 382.85; and DA = 512.77. The interior angles are as follows (measured as angles to the right): A
= 81º 23'; B = 72º
33'; C = 89º 40'; and D = 116º
24'. The bearing of AB is S
33º 19' W, and the side BC is in the SE
quadrant. Determine the bearings of each side and then use your traverse spreadsheet to compute the corrected and balanced latitudes and
departures for the traverse. Show all work for determining the
bearing of each side.
Follow the homework format
and then scan or combine the images of your work
into a single file and upload it to the
eCourseware Dropbox).
Part 4. Use the information in the
course syllabus to compute your current grade in the
class.
Part 5. Read Chapters
17 and 18 in "A Mind for
Numbers" by Barbara Oakley.
Requirements
Lastly, a web page describing the CIVL 1112
homework
policy is available. Read it before you turn in this assignment.
