Objective
The purpose of this assignment is twofold: first, to continue to develop
your engineering spreadsheet skills; and second, to develop analysis tools that will
complement your
concrete beam design project. Assignment #7 should
complement and add capabilities to the spreadsheet you develop in
Assignment #6.
Part 1: Develop a spreadsheet to predict the strength-to-weight ratio
(SWR) of a rectangular reinforced concrete beams subjected to tension and shear forces.
Input parameters should include: the height and length of the beam, the amount
of reinforcement (both tension and shear), the compressive strength of the concrete, the yield stress of the
reinforcement, the unit weight of the concrete, the minimum concrete cover for the
reinforcement, the minimum spacing between rebars, and the shear reinforcement spacing.
From these inputs, you should compute the minimum width of the beam,
the depth to the center of the reinforcement, the area of steel in As
in both tension and shear, the b1 constant,
depth to the neutral axis, the moment
capacity, the ultimate force due to both tension and shear, the weight of the beam, and the SWR. In addition,
check to see if the given reinforcement allows the beam to be controlled by
tension, compressive, or is in the transitional zone (see
class notes).
Click
here for a template copy of the
following rectangular
reinforced concrete beam analysis spreadsheet.
Based on the value c/d, determine weather the beam is controlled
by tension, compression, or is in a transitional area. In general, the
predictive value for P is the minimum of the tension, shear, and compression
values.
If the required value for a > d than write "a>d"
next to the cell and write "NG" in the SWR cell.
If required width of the beam computed from the concrete cover,
the diameter of the tension rebars, and rebar spacing is greater than 8 inches, than write
"Too Wide"
next to the beam width cell.

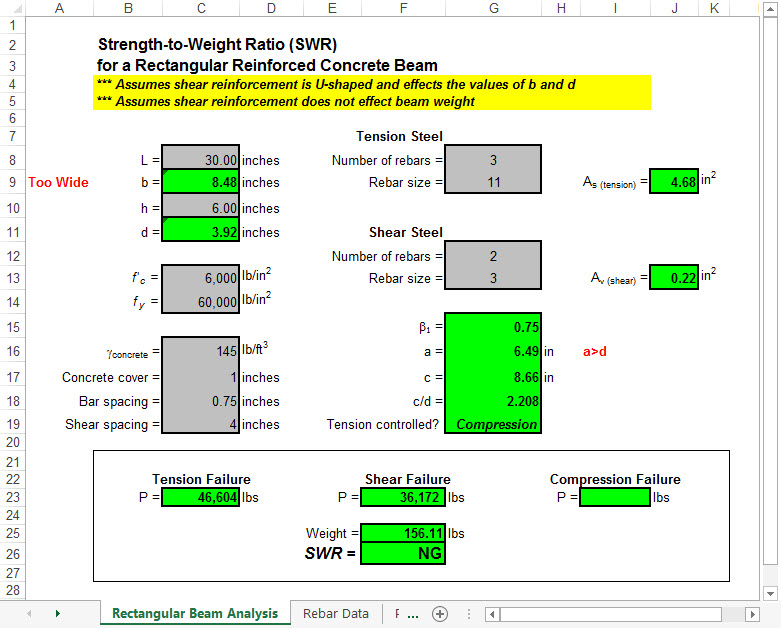

An example of conditions that fail to satisfy the rebar yielding
and spacing conditions is shown below.
Predict the SWR for the reinforced concrete beam displayed in the sample
interface sheets shown above.
Part 2: Use your spreadsheet to
determine the nominal flexural strength and SWR of the rectangular section given: L = 30
inches, h = 6 inches, f'c = 5,000 psi, fy = 60,000 psi,
As = two #5 bars in tension, one #3 rebar in shear, concrete cover = 1
inch, tension bar spacing = 1 inch, and shear bar spacing = 2 inches.
Requirements
Lastly, a web page describing the CIVL 1112
homework
policy is available. Read it before you turn in this assignment. You will be graded
throughout the semester according to the policy outlined in it.
