These SWR values are preliminary and do not reflect
any adjustments for cost exceeding $2.
|
|
|
|
|
|
|
|
|
Cost-Adjusted SWR |
|
Group |
Weight |
Load |
SWR |
Weight |
Load |
SWR |
Cost |
SWR |
|
Camp's Cub Scouts |
47.60 |
23,100 |
485.3 |
45.00 |
20,800 |
462.2 |
$ 2.00 |
473.8 |
|
Wingineers |
44.40 |
21,700 |
488.7 |
44.40 |
21,600 |
486.5 |
$ 2.06 |
473.4 |
|
United Engineers |
41.40 |
19,090 |
461.1 |
40.50 |
18,780 |
463.7 |
$ 2.02 |
457.8 |
|
Chimichanga Express |
49.80 |
27,200 |
546.2 |
50.80 |
24,500 |
482.3 |
$ 2.30 |
447.2 |
|
Memphis Made |
37.40 |
14,760 |
394.7 |
39.70 |
18,240 |
459.4 |
$ 1.98 |
427.0 |
|
Tigers |
37.00 |
16,920 |
457.3 |
33.40 |
12,940 |
387.4 |
$ 1.92 |
422.4 |
|
Han Shot First |
36.30 |
14,950 |
411.8 |
37.50 |
14,870 |
396.5 |
$ 1.94 |
404.2 |
|
UOT |
40.40 |
15,100 |
373.8 |
38.00 |
13,900 |
365.8 |
$ 2.06 |
359.0 |
|
Jurassic Martians |
49.00 |
18,550 |
378.6 |
49.10 |
14,780 |
301.0 |
$ 1.66 |
339.8 |
|
Southern Matadors |
37.40 |
12,730 |
340.4 |
41.00 |
10,870 |
265.1 |
$ 1.63 |
302.7 |
|
Frog Kids |
41.80 |
7,190 |
172.0 |
46.10 |
12,460 |
270.3 |
$ 1.59 |
221.1 |

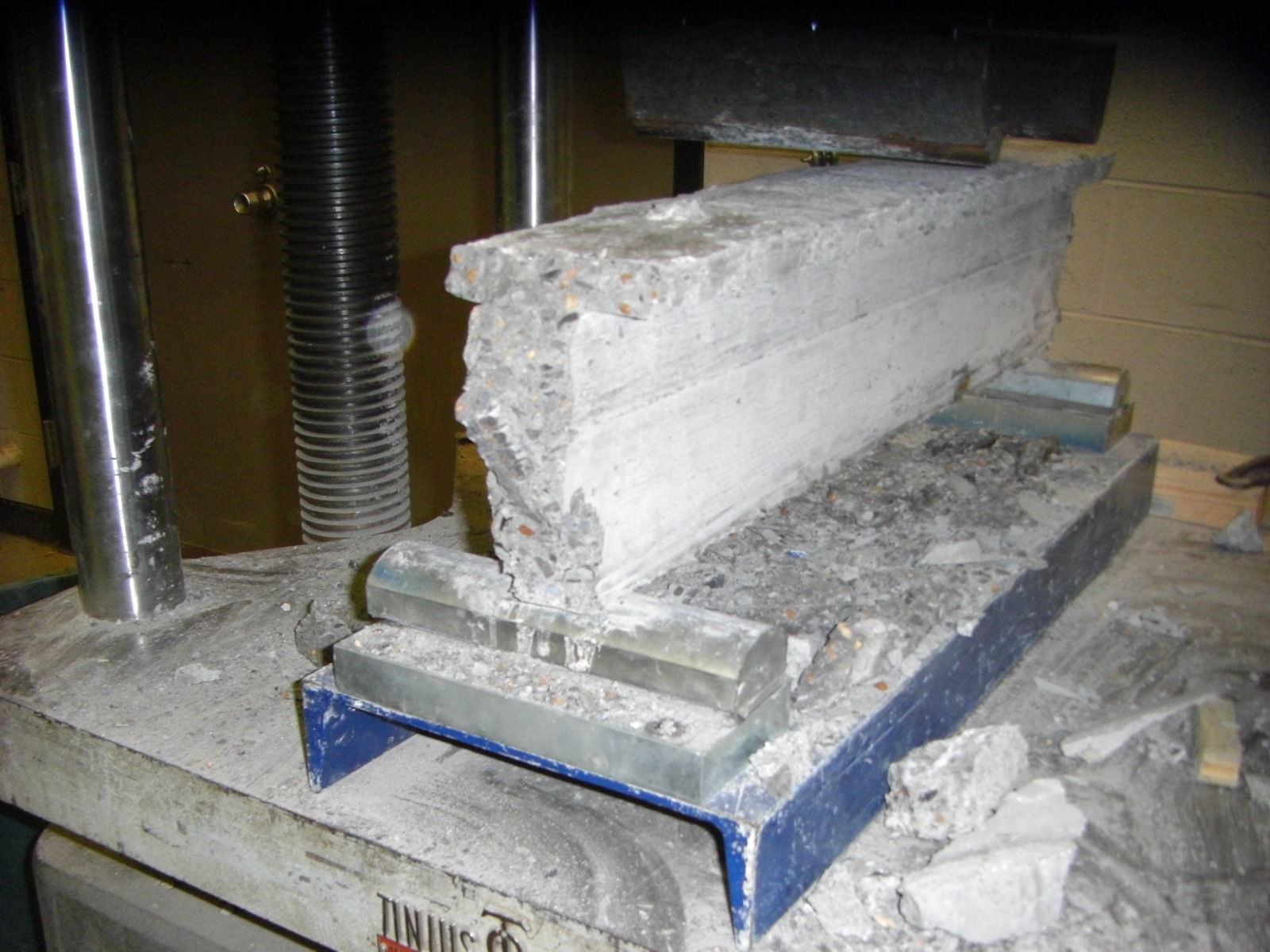

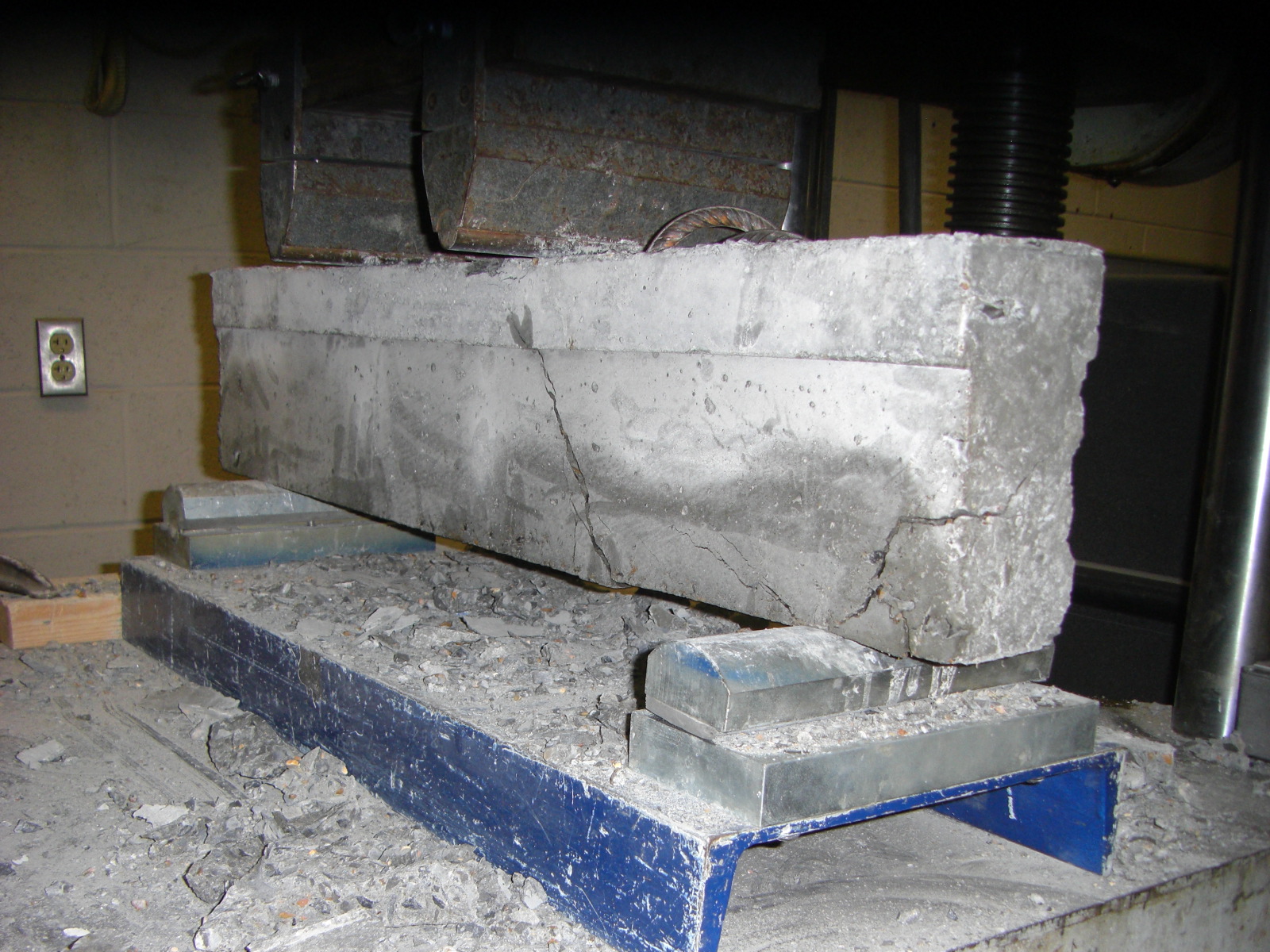

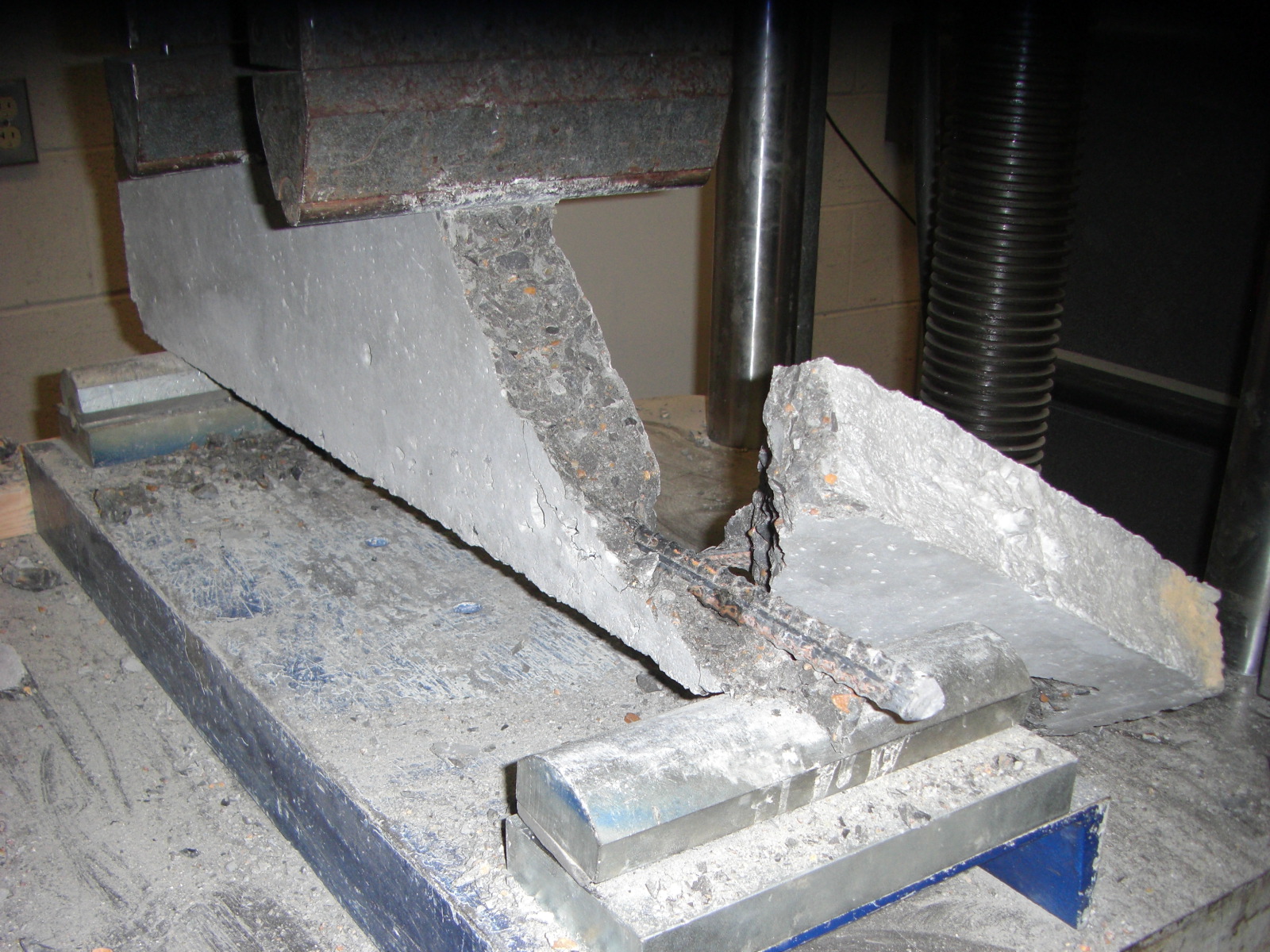

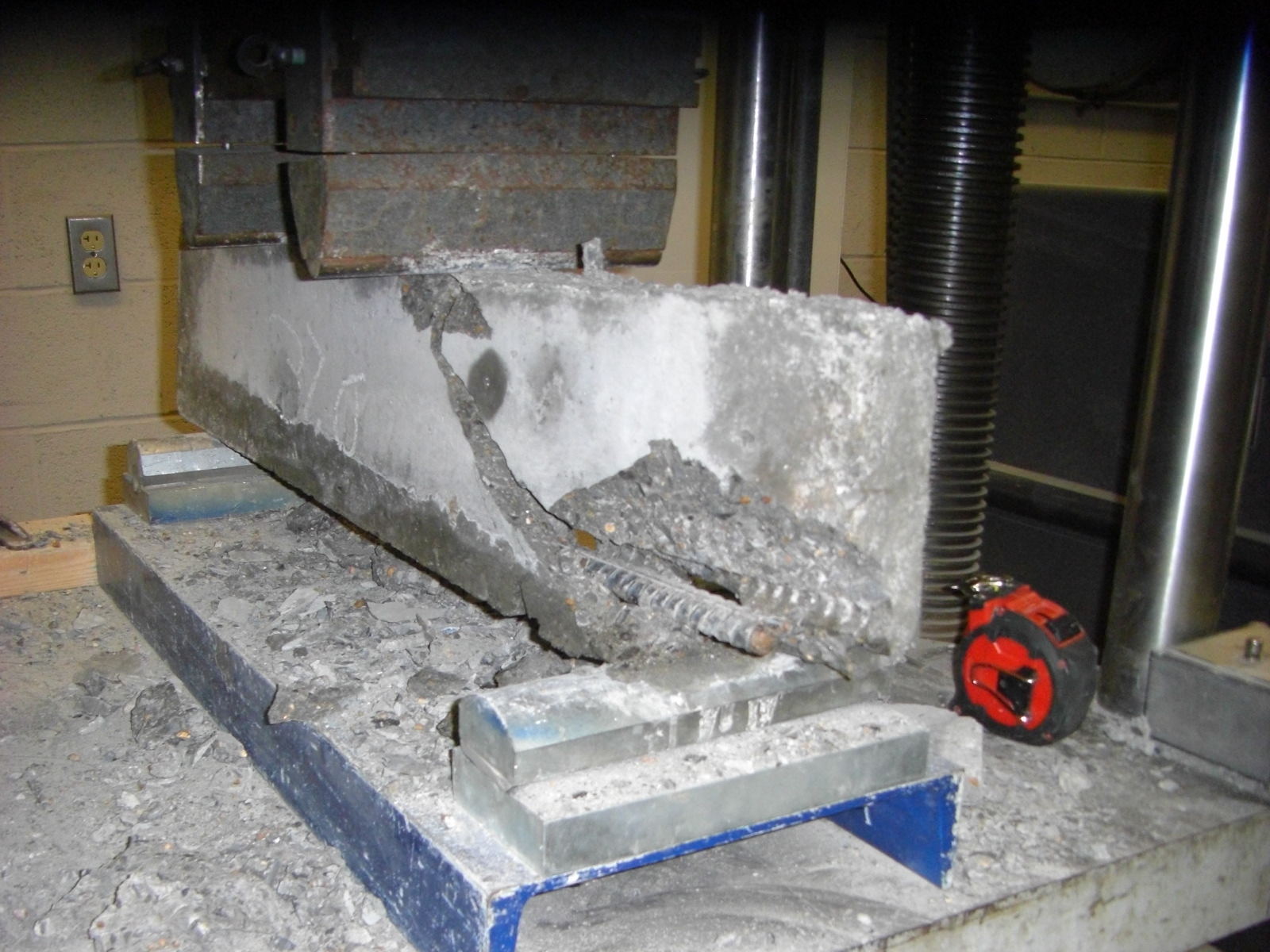

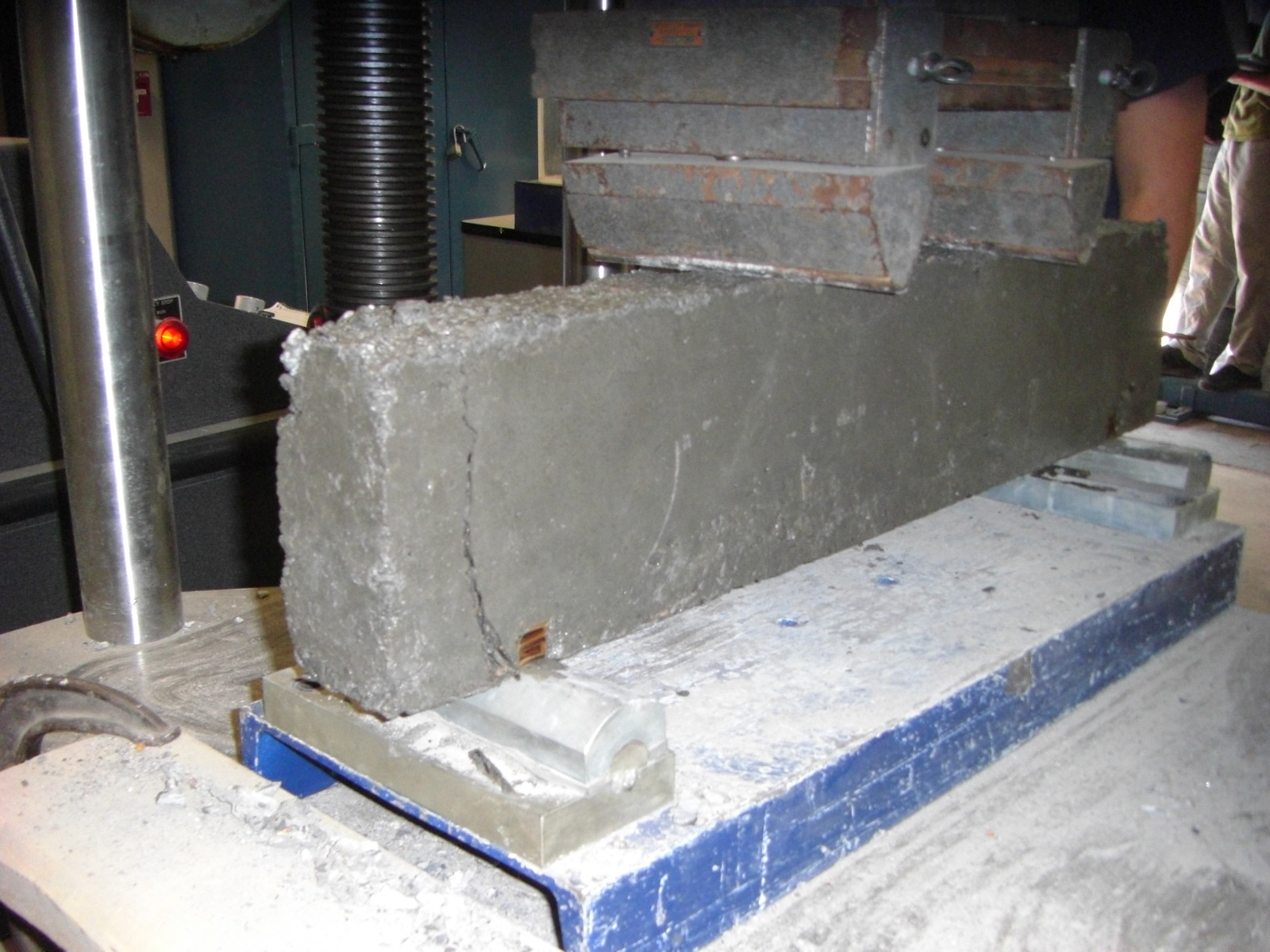

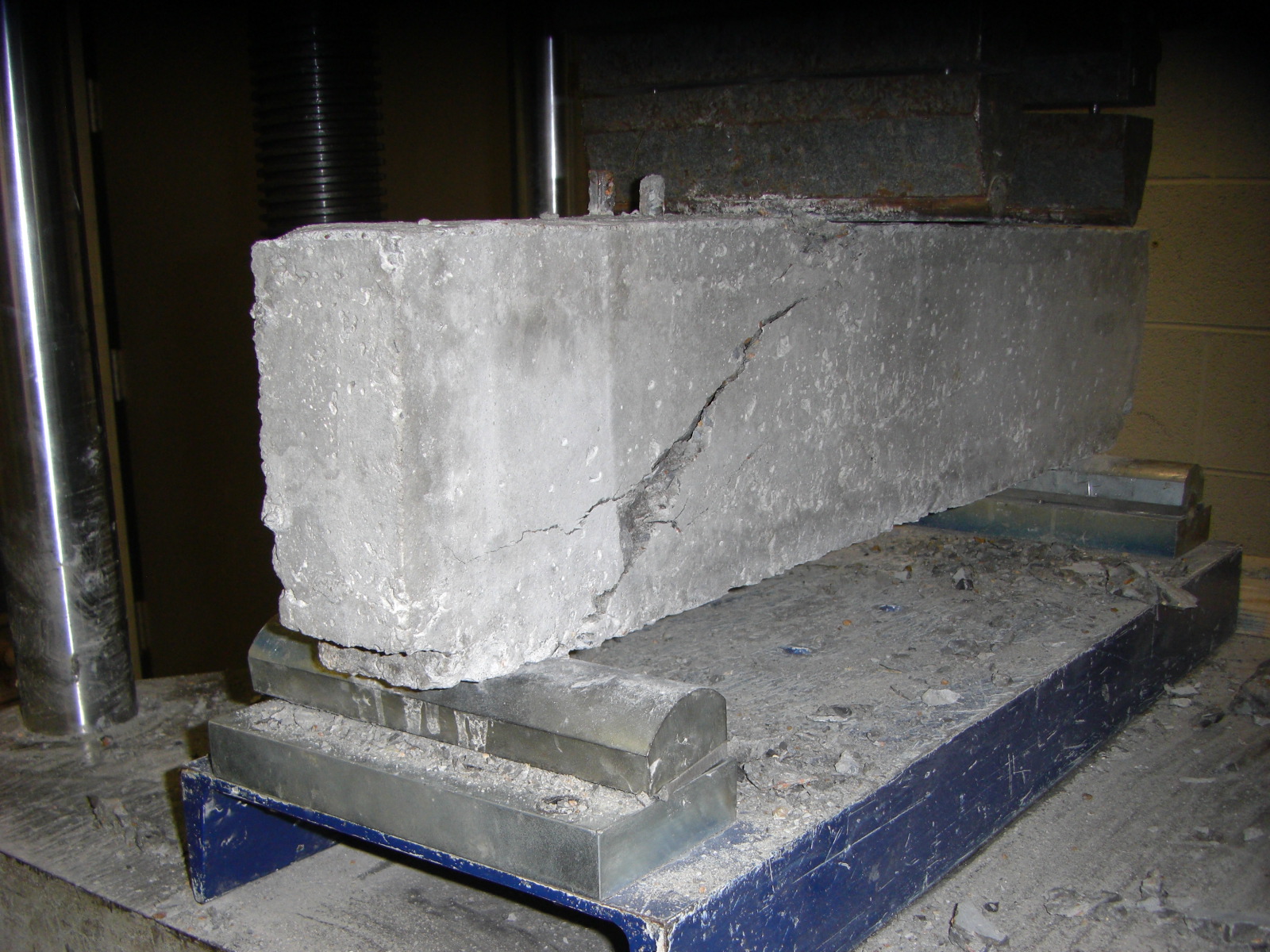

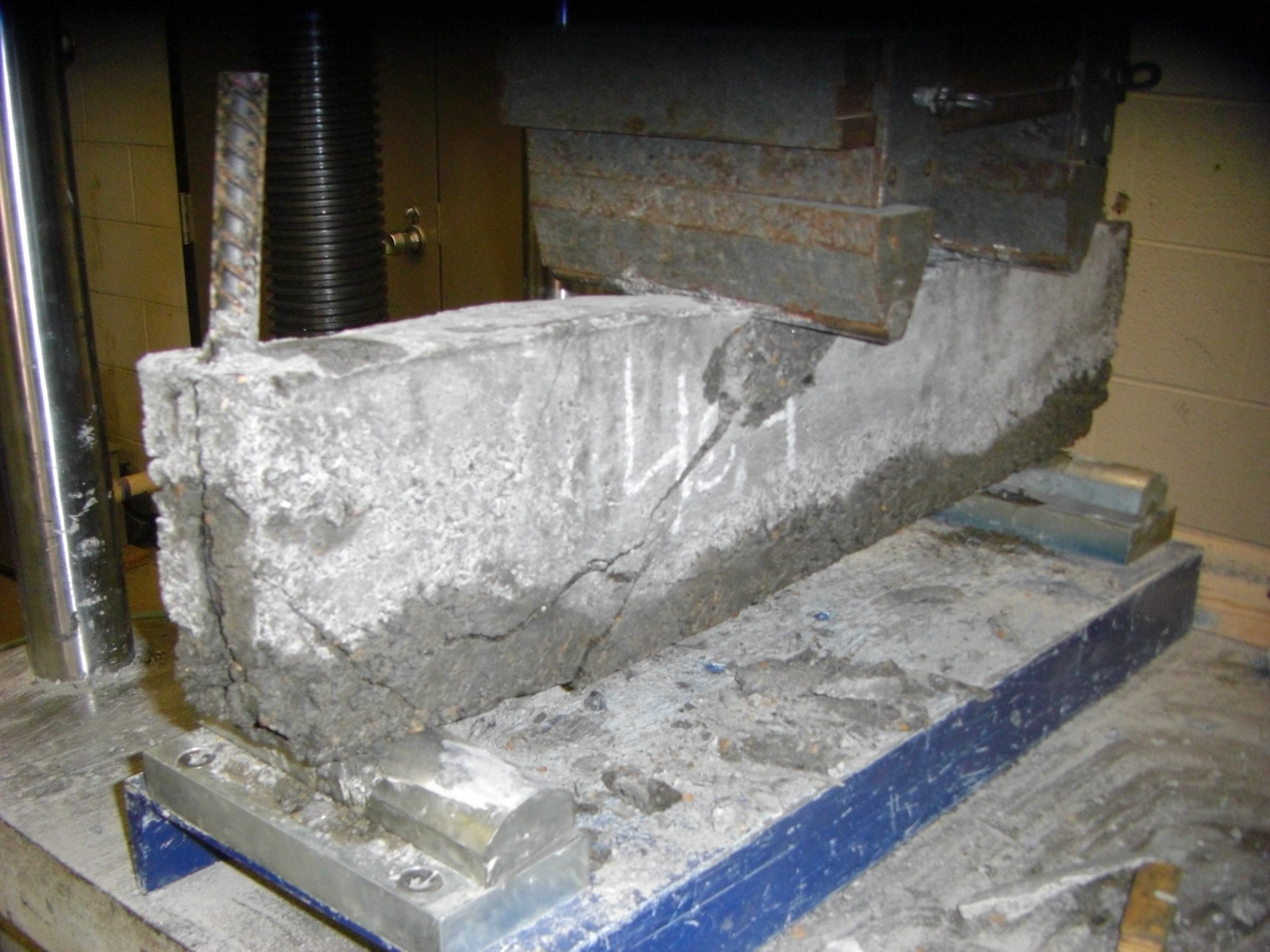

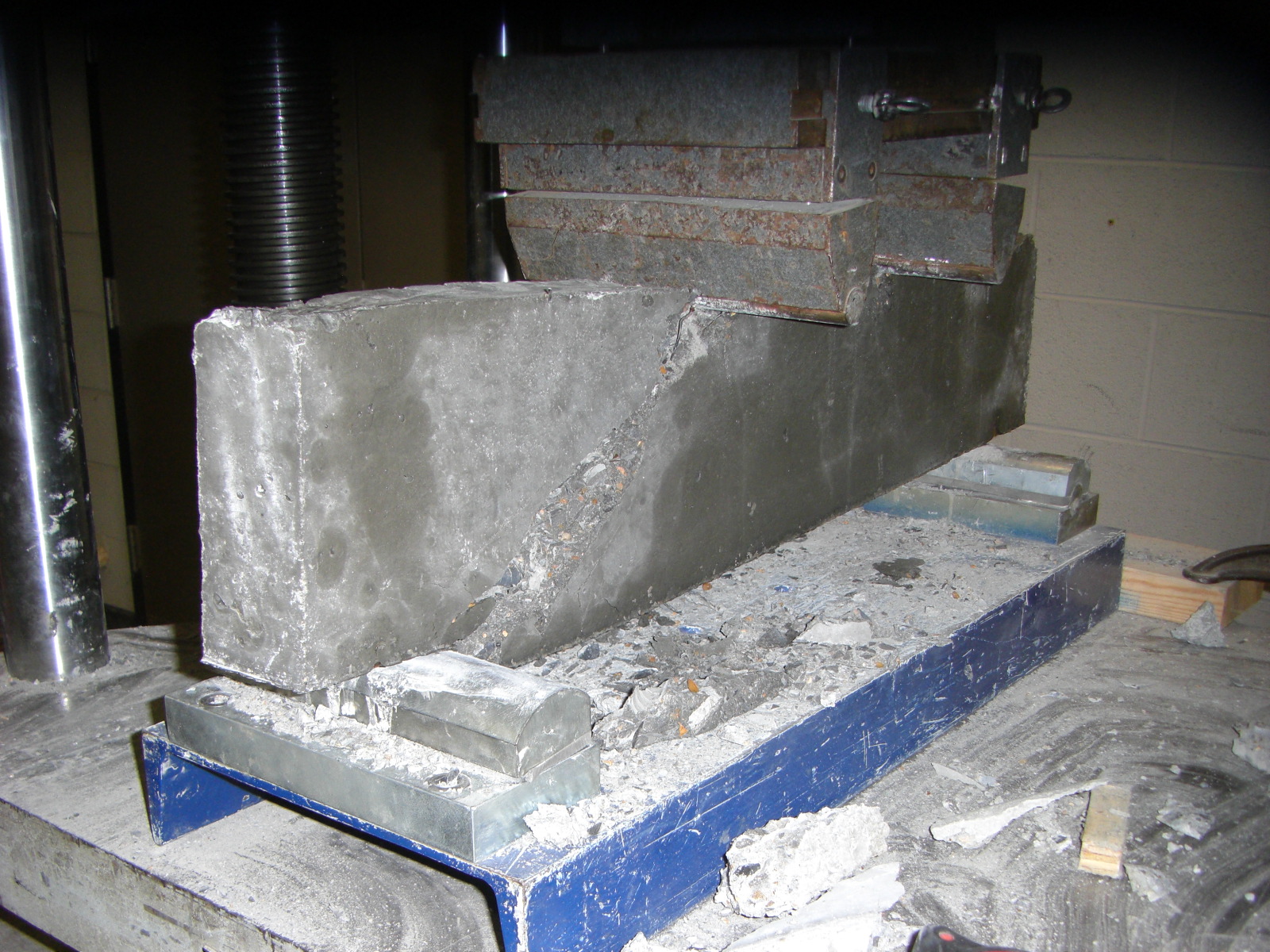

Click on Group name is see beam image.
