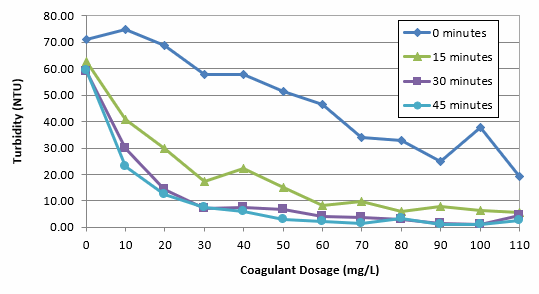

Jar Test Results - January 28, 2025
|
Average data |
|
|
|
|
|
|
|
|
|
|
|
|
|
Dosage, mg/L |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
NTU @ 0 minutes |
71.20 |
74.65 |
68.80 |
57.75 |
57.95 |
51.30 |
46.40 |
34.00 |
32.90 |
24.85 |
37.65 |
19.10 |
|
NTU @ 15 minutes |
62.55 |
40.65 |
29.75 |
17.29 |
22.15 |
15.06 |
8.22 |
9.68 |
5.88 |
8.02 |
6.18 |
5.72 |
|
NTU @ 30 minutes |
59.00 |
29.70 |
14.40 |
7.07 |
7.60 |
6.60 |
3.91 |
3.58 |
3.06 |
1.51 |
1.18 |
4.54 |
|
NTU @ 45 minutes |
59.45 |
23.10 |
12.30 |
7.49 |
6.04 |
3.10 |
2.26 |
1.63 |
3.18 |
1.20 |
1.02 |
2.56 |
