Excel Ranges

Use:
Many Excel functions allow the user to specify data by means of one or more range arguments. Ranges can be as simple as a single cell or as complex as a list of disjoint rectangles.
Syntax:
Single Cell:
Sheet!ColRow
List of Cells:
Individual cell addresses separated by commas

Sheetx!ColaRowa , Sheety!ColbRowb , ...
Adjacent Rectangle:
Top-left and bottom-right cell addresses separated by colon

Sheet!ColaRowa:ColbRowb
List of Rectangles:
Sheetx!ColaRowa:ColbRowb , Sheety!ColcRowc:ColdRowd , ...
Examples:

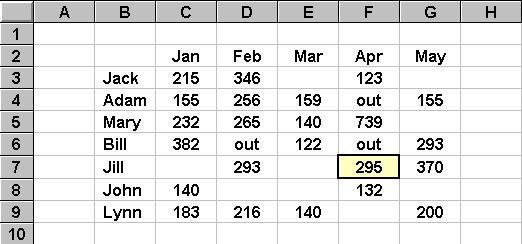

Single Cell:
Sheet1!F7 ( or simply F7 ) contains the number 295


spreadsheet

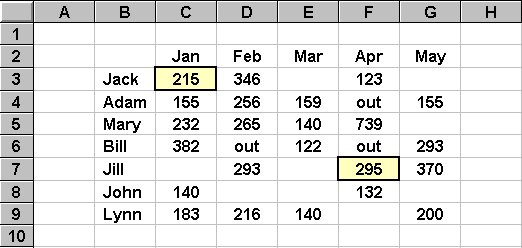

List of Cells:
Sheet1!C3,Sheet1!F7 ( or simply C3,F7 ) contains the numbers 215 and 295


spreadsheet

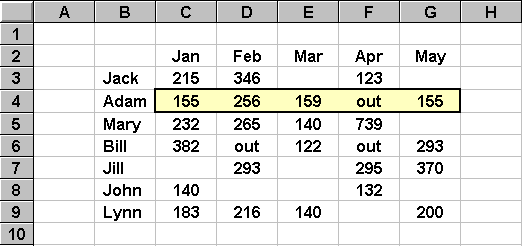

Row of Cells:
Sheet1!C4:G4 ( or simply C4:G4 ) contains four numbers and the string "out"


spreadsheet

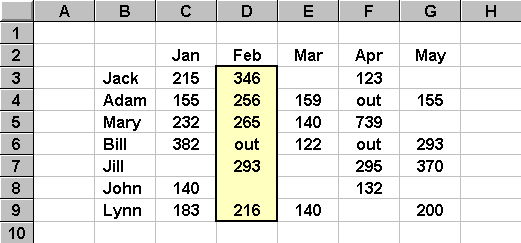

Column of Cells:
Sheet1!D3:D9 ( or simply D3:D9 ) contains five numbers, the string "out" and one blank cell


spreadsheet

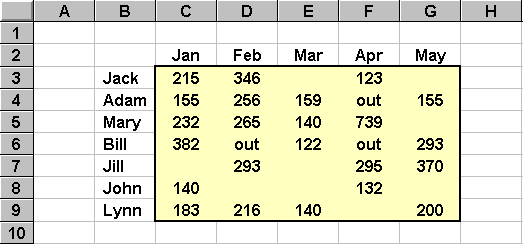

Rectangle of Adjacent Cells:
Sheet1!C3:G9 ( or simply C3:G9 ) contains 23 numbers, three "out" strings and nine blank cells


spreadsheet

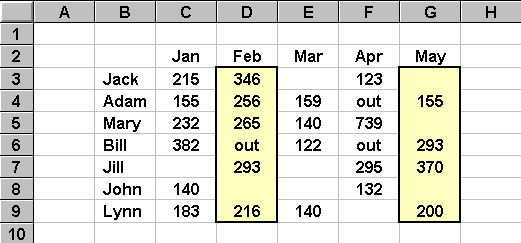

Disjoint Cells:
Sheet1!D3:D9,Sheet1!G3:G9 ( or simply D3:D9,G3:G9 ) contains nine numbers, the string "out" and four blank cells


spreadsheet

Note:

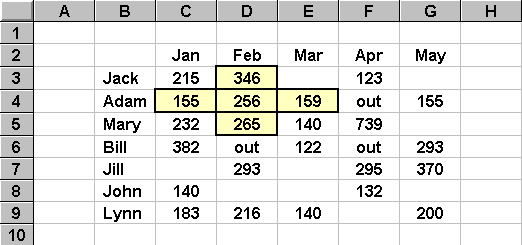

Care must be taken when a list of overlapped rectangles is specified. Excel treats the overlapped cells as multiple cells. This can cause problems with some functions (e.g., COUNT, SUM).

For instance, the list D3:D5,C4:E4 includes cell D4 twice. Excel will treat the list as six numbers instead of five. It will compute a SUM of 1,437 instead of 1,181.

spreadsheet
Related Topics:
Single Cells, Relative & Absolute Addresses
