CIVL 7117 - Homework 5a
set cell vertical height

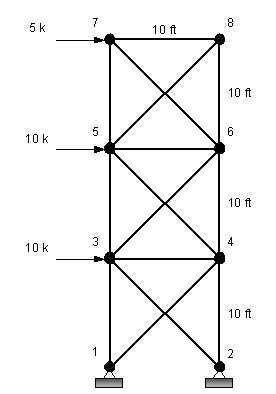

For the plane truss shown below, determine the nodal displacements and element stresses.
Nodes 1 and 2 are pin joints. Let  E = 107 psi and the A = 2.0 in2 for all elements.
