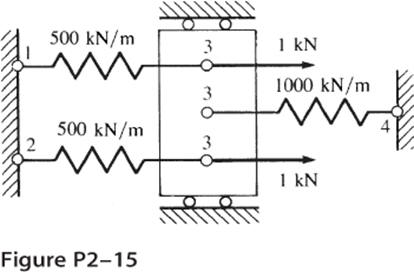

For the spring assemblage shown in Figure P2-15, determine the nodal displacements, the forces in each element, and the reactions. Use the potential energy approach.
