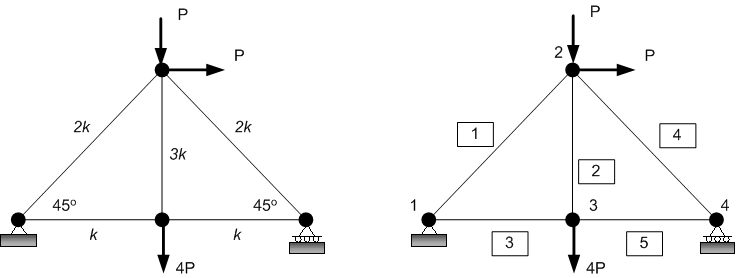

Develop the element stiffness matrices and system equations for the plane truss below. Assume the stiffness of each element is constant. Use the numbering scheme indicated. Solve the equations for the displacements and compute the member forces.

Solution: The approximate vertical deflection at node 3 is -6.8333P/k and the force in element 1 is -2.8284P.
