Charleston's Arthur Ravenel Bridge (Cooper River Bridge)

Between Charleston, South Carolina (USA) and Mount Pleasant, South Carolina, stands the Grace Memorial Bridge.  Completed in 1929, the cantilever steel structure has a main span of 1050 ft., or 320 m. and a total length of 3.6 miles or 5.79 Kilometers.  A parallel bridge, with a similar design but a shorter main span, was built in 1966.  This allowed the old bridge to be converted to one-way traffic.  The bridges have navigation clearance of 135 ft., or 41.15 m.

July 16, 2005: Its official: The Arthur Ravenel Jr. Bridge "is"

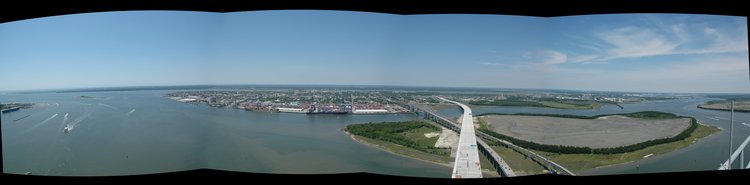

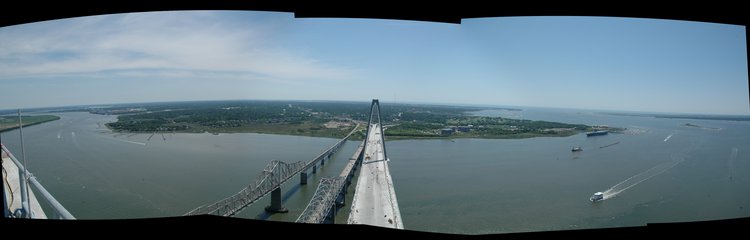

From the top of the West Tower: Looking east

Looking west

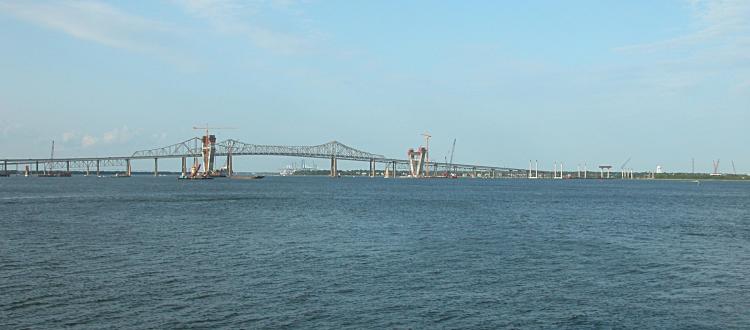

August 23, 2003

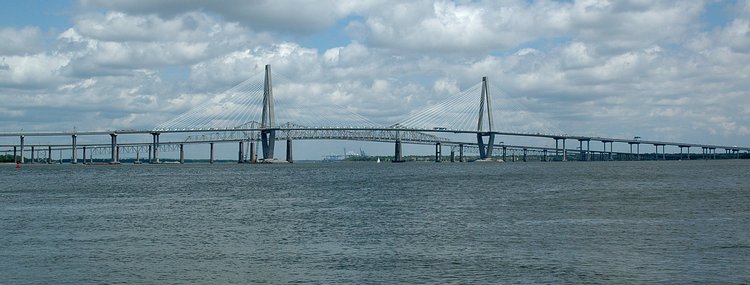

April 23, 2005

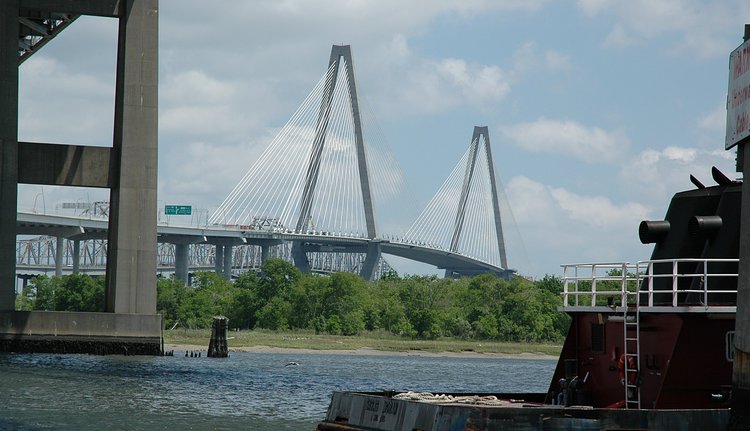

As seen from the Sea Breeze Marina - next to the PBC pier

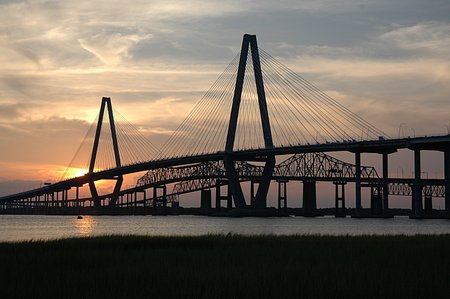

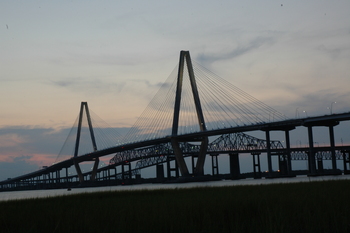

July 16, 2005:

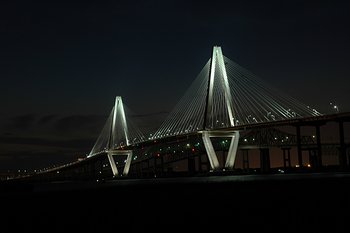

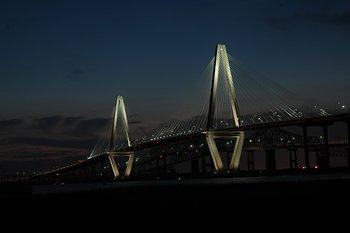

The end of the first day of the working life of the Arthur Ravenel Jr. Bridge

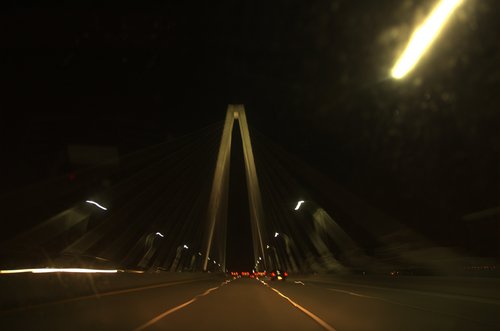

Driving (officially, that is) home across our new bridge for the first time

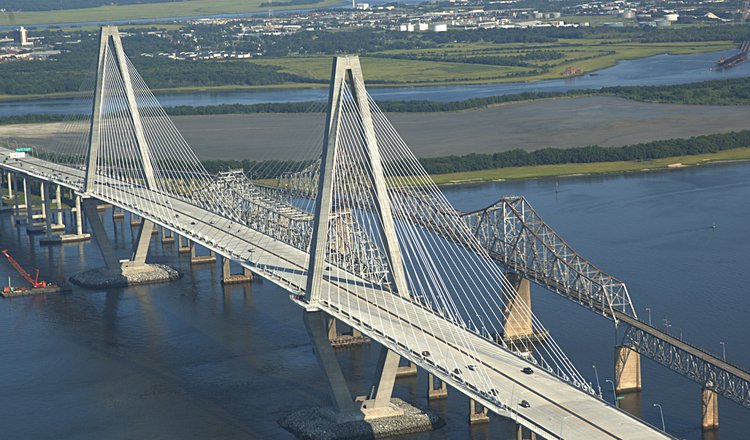

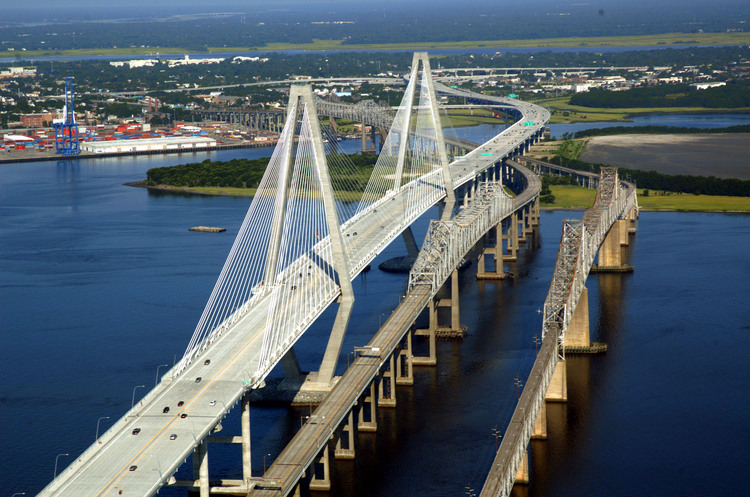

July 17, 2005: The first day of traffic

July 12, 2005: Presenting first views of a clean bridge

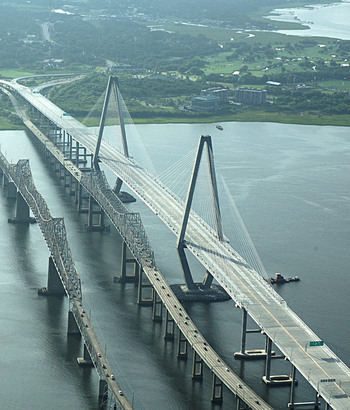

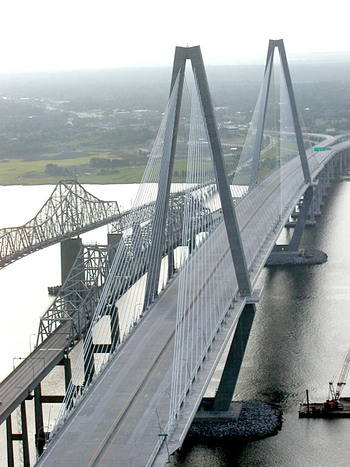

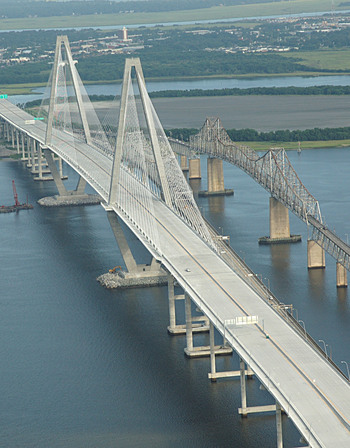

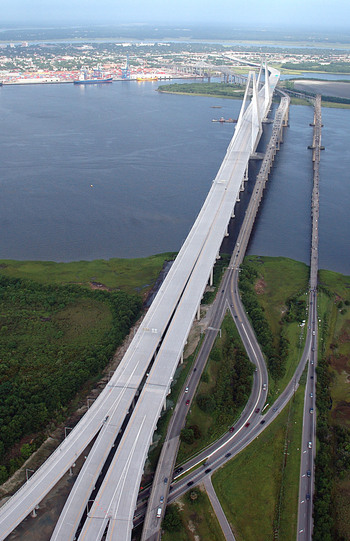

Here are a few vertical presentations
Looking from Mt. Pleasant

Looking from Charleston

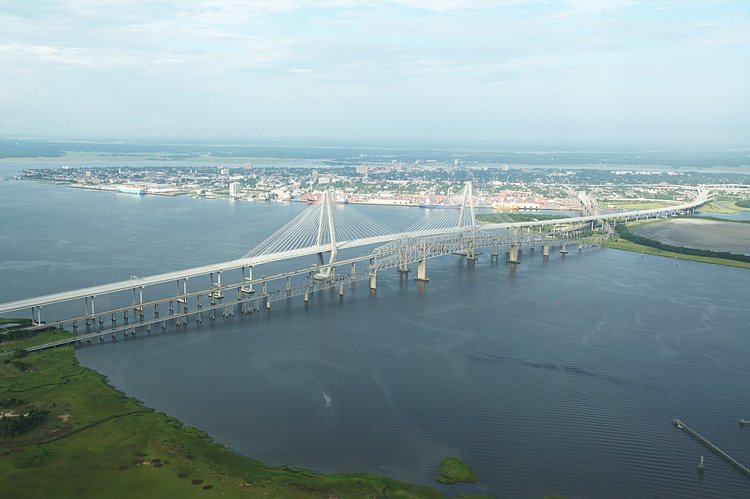

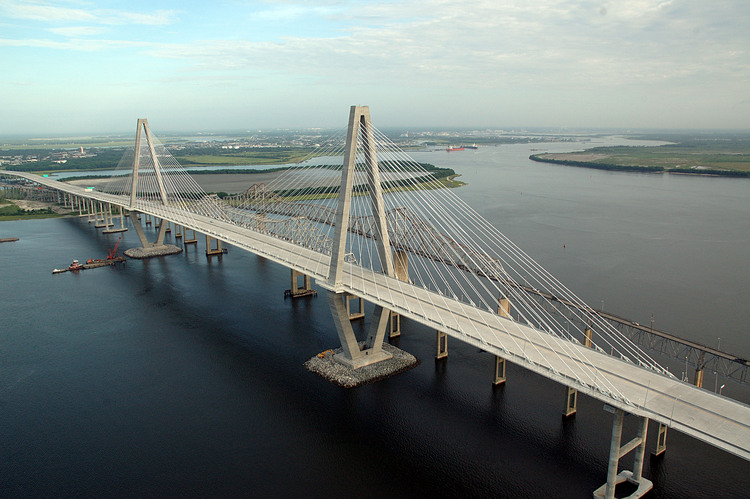

July 12, 2005: More views of a clean bridge

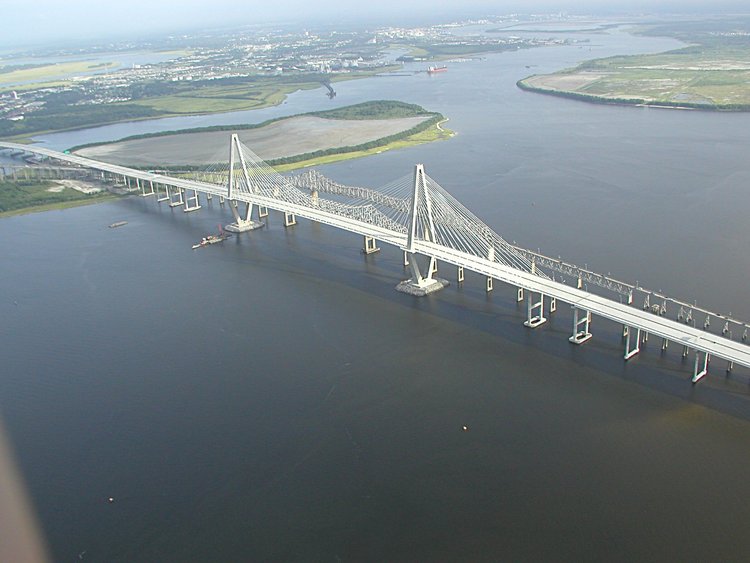

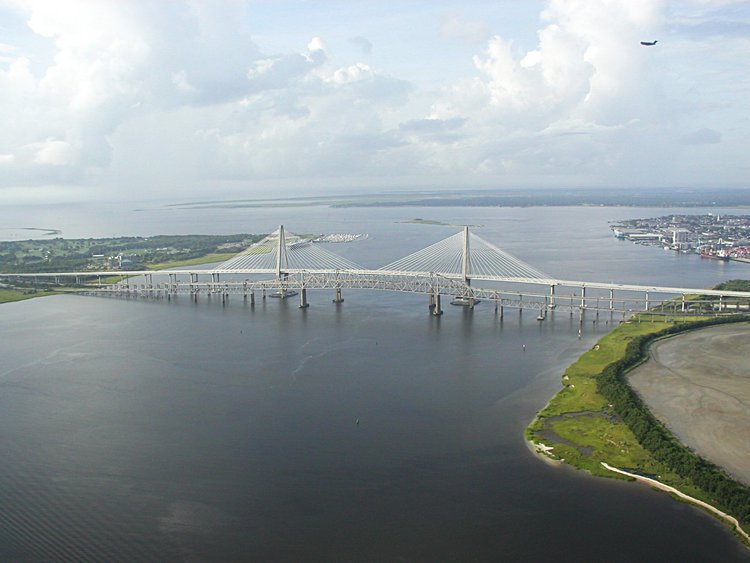

Looking south from the edge of Drum Island with a C-17 in the upper right

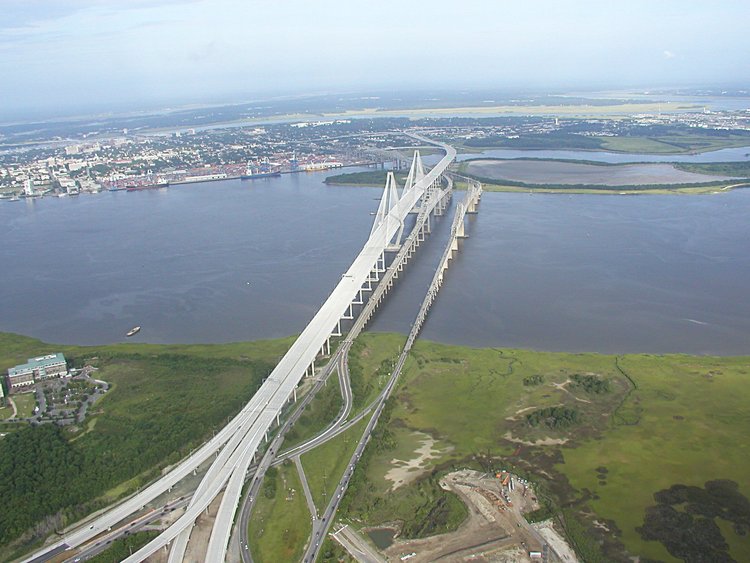

Looking north over the Motley Rice Building

Looking toward Charleston from Mt Pleasant

Another look toward Charleston From Mt. Pleasant
