CIVL 4122 - SAP2000 Beam Homework Assignments
set cell vertical height

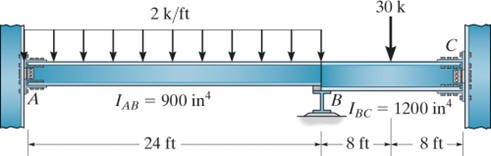

Determine the moments at A, B, and C, then draw the moment diagram for the beam. The moment of inertia of each span is indicated in the figure. Assume the support at B is a roller, A and C are fixed, and E = 29(103) ksi.









Click here for a cover page for the problem
