The steel-trussed bent shown in Figure 1(a)
supports a portion of the pedestrian bridge.
It is constructed using wide-flange sections
for the columns and the top beam, which
supports the bridge loading, estimated to be
8 k, as shown in Figure 1(b).
The ends of the top beam are welded to the
columns, and the bottoms of the columns are
welded to base plates, which are, in turn,
bolted into the concrete. The internal truss
elements are bolted at their ends to gusset
plates, which are welded to the web of each
column.
Use the SAP2000 model you developed for
17-3P and design the appropriate elements
using the Steel Frame Design tool.
Hand in a copy of the
cover page
and an image displaying the selected
sizes and stress ratios from the Steel Frame
Design tool.
(a)
(b)

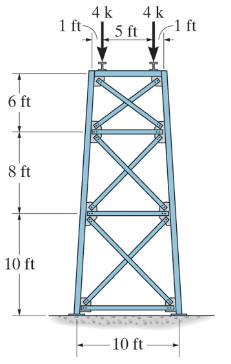

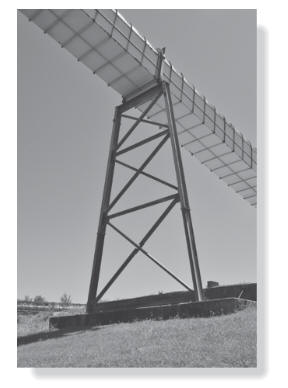

Figure 1. Structural bent support a
walkway (a) photograph, and (b) geometry and
loading.

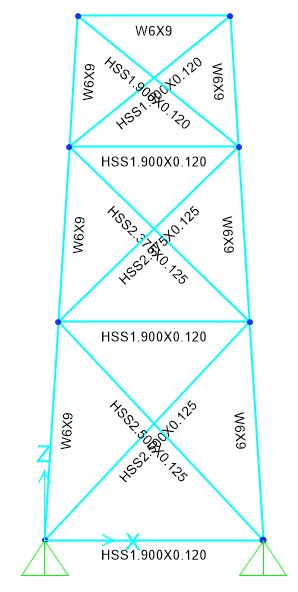

Below oar the section
selected by the Using th3e4 SAP2000 Steel Design
tool.
