Determining Weight of Structure in SAP2000

Click on the File tab along the top of the SAP2000 interface and then on Print Tables.

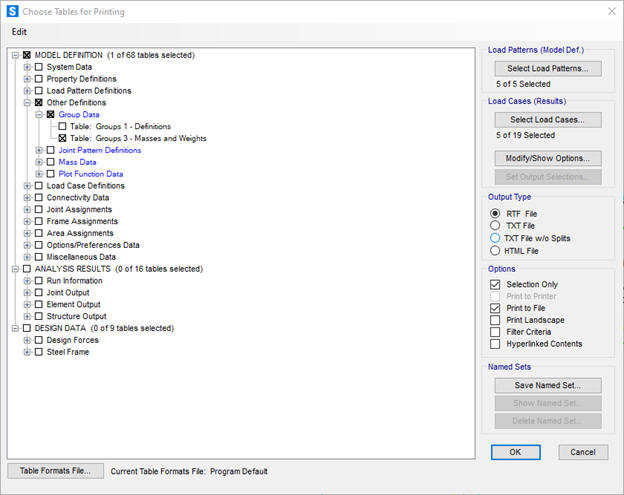

Under the MODEL DEFINITIONS section, expand the Other Definitions menu, then the Group Data, and then click on the Table: Groups 3 – Mass and Weights checkbox.

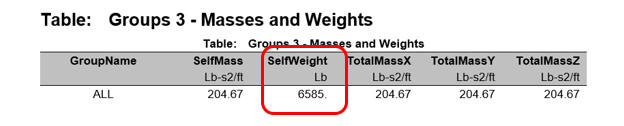

Click OK, and the resulting Word document shows the structures' weight.
