CIVL 4122 - Setting values of A and I in SAP2000
set cell vertical height
Setting general values of area and moment of inertia in SAP2000

Define Frame Sections - To define the cross-section properties of a structural element, click on the Define menu located at the top of the SAP2000 interface window, then click on Section Properties, then Frame Sections..., and then the Frame Properties window is displayed.

A screenshot of a computer

Description automatically generated

The default Frame Section label is FSEC1. To change the properties of the frame section, click on the Modify/Show Property... button. The I/Wide Flange Section window is displayed.

A screenshot of a computer

Description automatically generated

To define the material of this frame section, click on the Material pull-down menu and select our weightless material A992Fy50. Click OK to return to the Frame Properties window, then click OK again.

In this example, the frame elements have a cross-sectional area of A = 10 in2 and a moment of inertia value I = 600 in4. Click Add New Property on the Frame Properties menu to specify this value. The Add New Property menu is displayed. For this example, click the Frame Section Property Type dropdown menu, select Other, and then click on General.

Click Add New Property on the Frame Properties menu to specify this value. The Add New Property menu is displayed. For this example, click the Frame Section Property Type dropdown menu, select Other, and then click on General.

Click Add New Property on the Frame Properties menu to specify this value. The Add New Property menu is displayed. For this example, click the Frame Section Property Type dropdown menu, select Other, and then click on General.

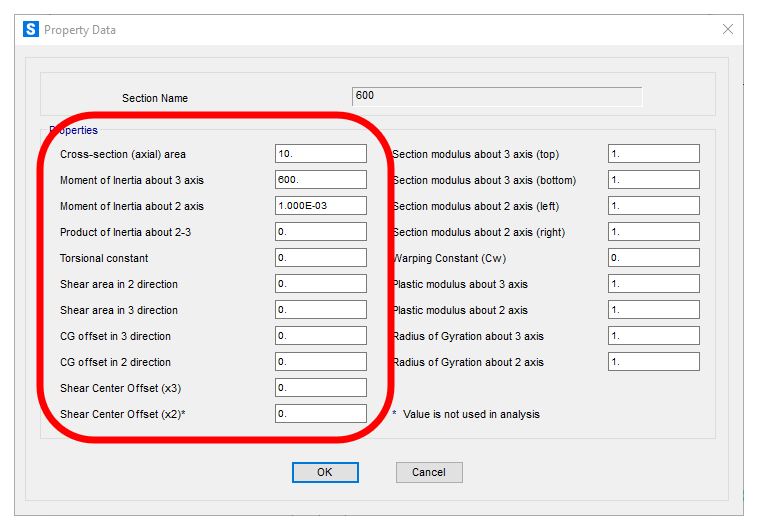

The Property Data menu is displayed. In this example, the Moment of inertia about the 3 axis (the strong axis) is 600 in4. The value of the Cross-sectional area is 20 in2. The Moment of inertia about the 2 should be a small value of 0.001 to minimize their effect on the results. Set all the other values in the left column to zero.

Enter the value and click OK. Then click OK on the General Shapes menu, and the Frames Properties menu is displayed. Note that FSEC2 has been added to the list of sections. Click OK.
